Place of Origin: | Fujian China |
---|---|
Brand Name: | hi-create |
Certification: | ISO\CE |
Minimum Order Quantity: | 1 set |
Price: | us200000-1300000 |
Packaging Details: | The wooden case |
Delivery Time: | 45 days |
Payment Terms: | L/C, D/A, D/P, T/T |
Condition:: | New | Product Type:: | Diaper Machine |
---|---|---|---|
Place Of Origin:: | China | Voltage: | 380V |
Core Components:: | PLC, Engine, Gear, Motor, Pump, Bearing, Gearbox, Pulp Crusher, Dum Former, SAP Dosing Unit, Die Cutter, Glue Applicators | Raw Materials With Auto Unwinding:: | Auto Splicing, Auto Tension Control 6sets |
High Light: | Baby Diaper Manufacturing Machine 380V,600pcs/min Baby Diaper Making Line,PLC Control Baby Diaper Production Line |

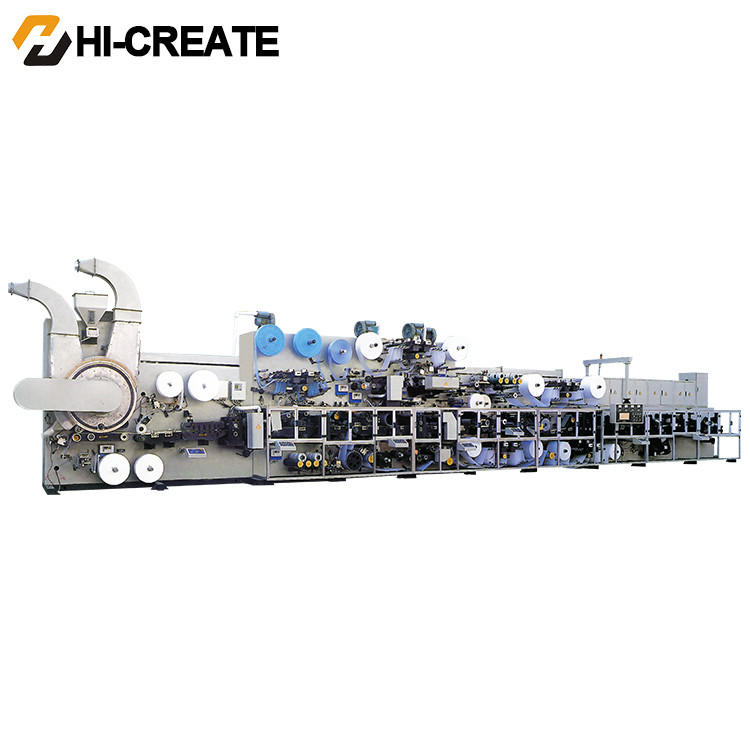

Machine For Manufacturing Baby Diaper Making Production Line
1
|
Design speed
|
600pcs/min
|
2
|
Stable working speed
|
500pcs/min
|
3
|
Qualified rate
|
≥ 97%
(exclude the wastage due to the glue applicators and materials splicing joint) |
4
|
Efficiency
|
≥ 85%
|
5
|
installation capacity
|
≥240KW
|
7
|
Electricity
|
380V ±5%,50HZ
|
8
|
Wire
|
Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³
|
9
|
Air pressure
|
≥0.8Mpa 2.6m³/min
|
10
|
Total weight
|
About 78tons
|
11
|
Machine size
|
32×8×5 M(L×W×H)
|
12
|
Working space
|
38×12×8 M (L×W×H)
|
13
|
Machine color
|
Rice white ,can be changed by order
|
14
|
Product size
|
S,M,L,XL
|
15
|
Containers
|
6X40HQ
|
