High Speed Full Automatic Adult Diaper Making Machine Production Line

Name: High Speed Full Automatic Adult Diaper Making Machine Production Line
Brand: Hi-Create
SKU: HC-AD-FS-08
Price: 150 USD
Availability: InStock
Rating: 4.5 (144 reviews)

Basic Information

Place of Origin:	Quanzhou, Fujian
Brand Name:	Hi-Create
Certification:	CE, ISO
Model Number:	HC-AD-FS-08

Minimum Order Quantity:	1 set
Price:	$150,000.00 - $60,000,000.00/Set
Packaging Details:	Pallet
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	1 set/month

Get Best Price Contact Now

Brand:	Hi-Create	Applicable Industries::	Manufacturing Plant
Showroom Location::	None	Voltage:	380V
Place Of Origin::	China	Weight:	40 Kg
High Light:	380V Adult Diaper Making Machine , 3 Axis Adult Diaper Making Machine , PLC Adult Diaper Machine

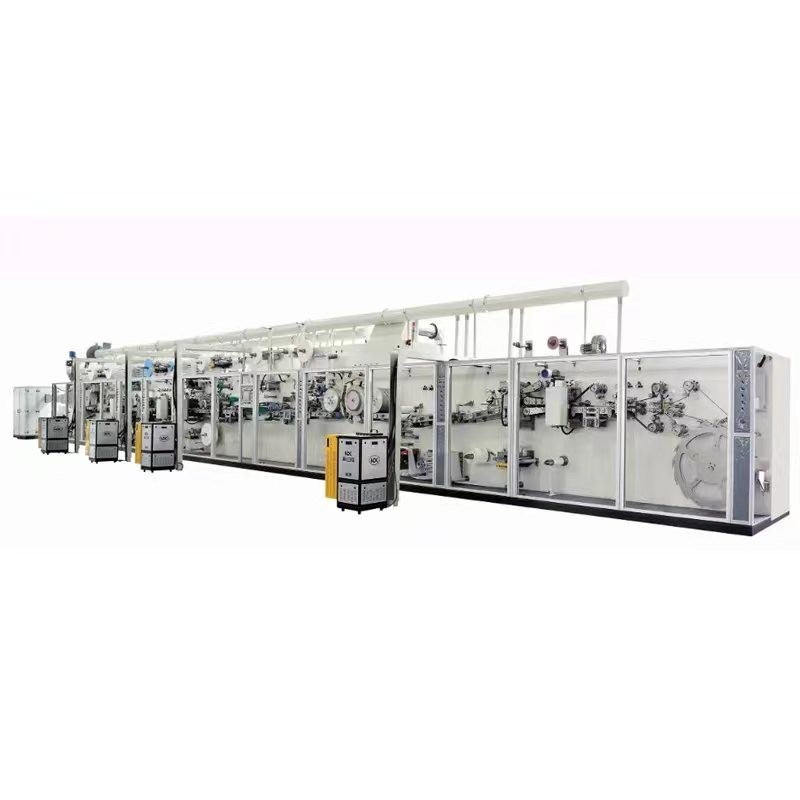

High Speed Full Automatic Adult Diaper Making Machine Production Line

Products Description

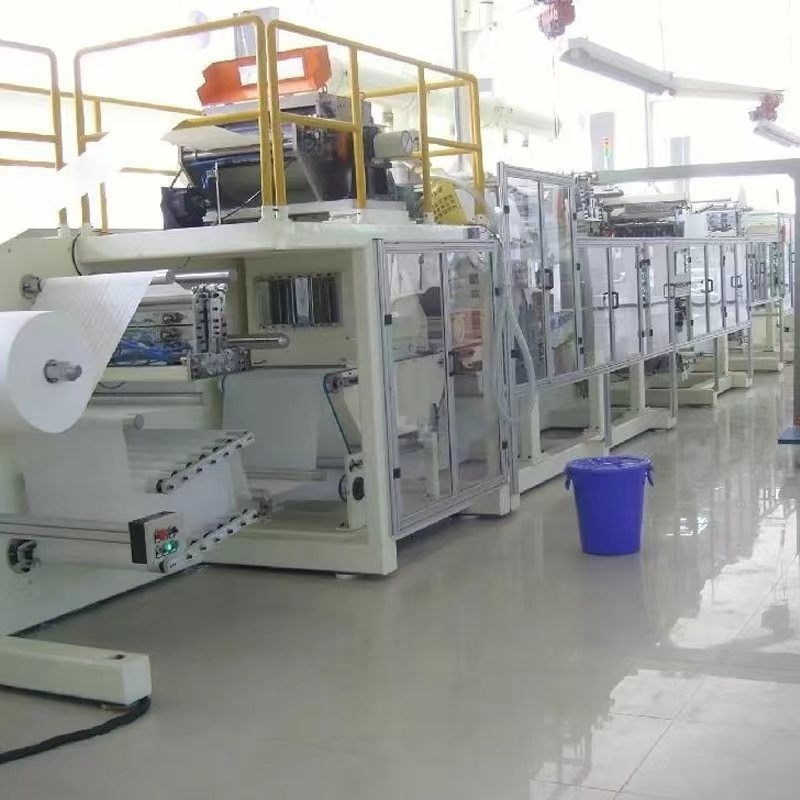

The Adult diaper production line includes mainframe, Gluing machine, packaging system and other supporting equipment, including air compressor, visual inspection system and metal detector.

Product Name	Adult diaper making machine
Designed Production Speed	600 Pieces/Min
Stable Production Speed	500 Pieces/Min
Material	100% Polypropylene
Use	Adult incontinence
Machine Voltage	380V, 50Hz, Three-Phase Five-Wire
Machine Power	350Kw~400Kw
Colors	Any color available
Width	According to your requirement
Payment	T/T, Alibaba Pay
Sample	Free
Packaged	PP bag+PE wrapping film, According to your requirement
Machine Size	3073.5m(LWH) (Can Be Customized)
Machine Weight	50T

I shape baby diaper production
Overall Size	3064m
Machine Size	2223.5m
Design Speed	600pcs/min
Stable work speed	450-500pcs/min
Pass percentage	98%
Power source	380V,50HZ
Machine capacity	about 260kw
Air pressure	0.6-0.8Mpa
Machine weight	About 60T
Configuration
Product size	S: 390x280 M: 450x320 L: 500x320 XL: 525x330
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Control system	PLC control system,Operating on the touch screen,Configure HDTV monitor
Materials corrective system	Germany BST automatic web guide system (optional).
Drive system	Three-axis or full servo
Product structure	Up&Down Tissue, Fluff core(mix with SAP), ADL, Backsheet, Front tape, Topsheet, Leg cuff N.W., Side Tape, Waistband.
Tension system	Up&Down Tissue ADL, Back sheet, Top sheet, Cuff N. W., are adopt A&B shaft active unwinding by inverter motor.
Packing Way	Equipped with the stacker at the request of client.

T shape baby diaper production
Product size	380x280 420x320 480x320 520x340
Safety system	Safety guard installed at the operating side, with security identifier, emergency stop switch at per segment, Driven side is equipped with the radiator system and safety wire.
Control system	PLC control system,Operating on the touch screen,Configure HDTV monitor
Materials corrective system	Germany BST automatic web guide system (optional).
Drive system	Full servo drive, digital size change, ensure, run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
Product structure	Top(bottom) tissue paper,sap core,ADL,hydrophobic NW(leg cuff),topsheet NW,PE film,spandex,frontal tape,elastic nonwoven(zero-waste),S cut
Tension system	Tissue paper, cotton core (SAP), Top sheet nonwoven, ADL,PE film,back&wing release paper,packing film A&B shaft unwinding by Inverter motor
Packing Way	Auto stacker as customized design (one push two exit.).
